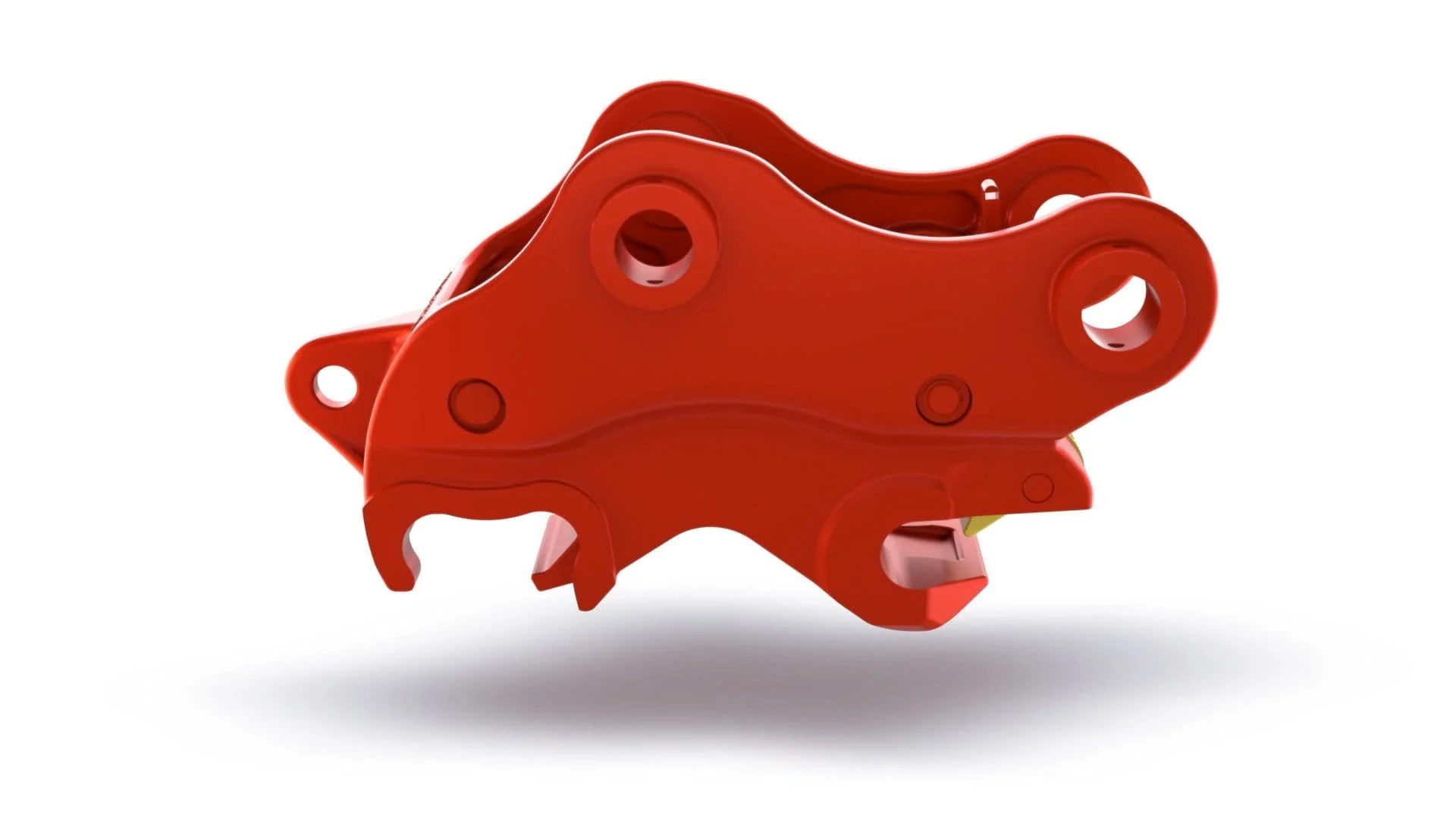

Miller Powerlatch - Hydraulic Quick Hitch - 6-45 Tonne

Award-winning hydraulic twinlocking quick coupler suitable for excavators from 3.5 to 45 tonne. The Miller PowerLatch Coupler is a proven design manufactured by the world’s leading authority on pin grabber quick coupler technology. Our patented and exclusive Automatic Blocking System (ABS) prevents the accidental release of an attachment. In the unlikely event of a hydraulic failure or driver error, buckets cannot be dropped or swung dangerously on the front pin.

DESIGNED TO OUTPERFORM

Cast from high tensile steel, it’s light and exceptionally strong. We removed surplus weight from non-load bearing areas and reduced the top section of the coupler for a more compact, aesthetic product. Wear indicators also make the couplers easier to service than ever before.



	Excavator size	Weight	Pin Diameter	Pin Centres
Range 3	6-9T	93kg	50 & 60mm	280-320mm
Range 4	10-15T	180kg	60 & 65mm	345-420mm
Range 5	16-18T	263kg	70 & 80mm	376-477mm
Range 6	19-21T	310kg	80mm	430-520mm
Range 7	22-27T	493kg	80 & 90mm	443-525mm
Range 8	28-35T	562kg	90 & 100mm	482-607mm
Range 9	36-45T	850kg	100 & 110mm	536-608mm
